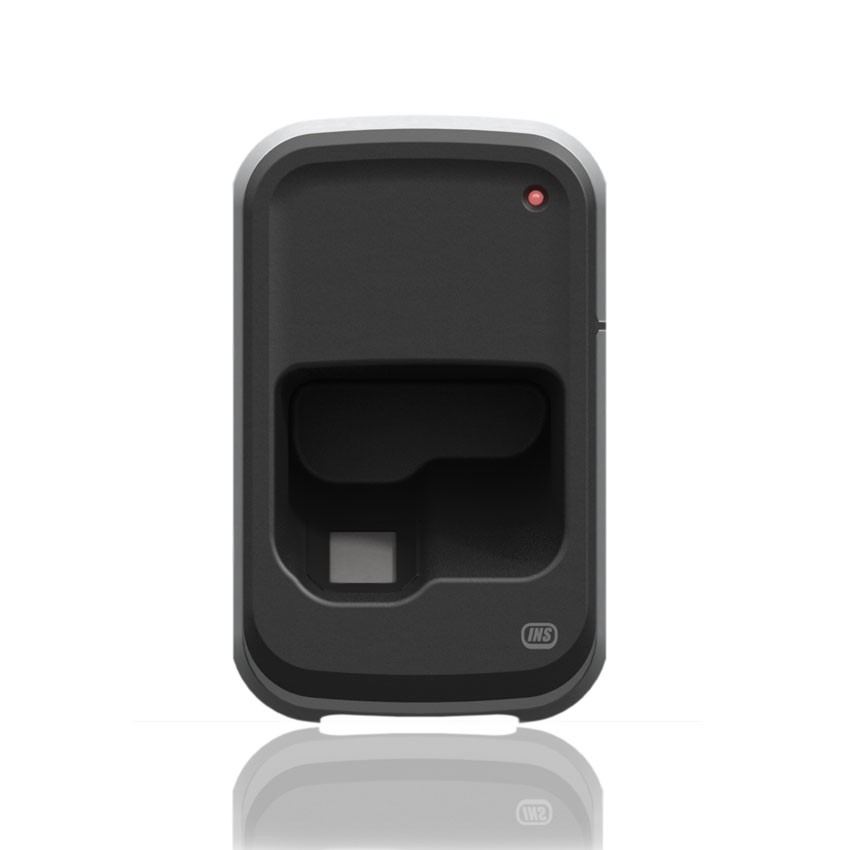

D7 : Biometrics with Card Reader

Quick Overview

Optical fingerprint scanner with both Mifare and DESFire EV1 card reader options available. The D7 range combines optical fingerprint reader technology with a contactless card reader. The D7 are low profile due to their semi-recessed design and feature a highly aesthetic, anodized aluminium surround. The electronics are fully encapsulated providing superior ingress protection and durability.

More Views

Product specifications

Card Reader Frequency 13.56MHz
Card Type Mifare Type A, DESFire EV1
Input Voltage +12Vdc
Output Type Wiegand, RS485 - encrypted
Data Output Options Card Serial Number, Facility Code and Card Number
Mounting Type Semi-Recess Mount
Other Input Devices No
